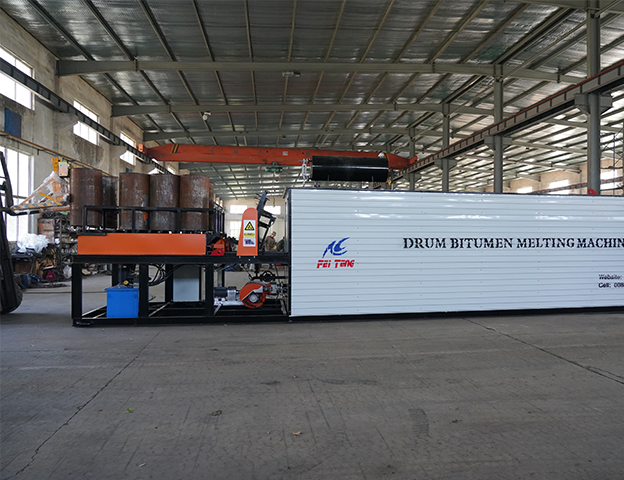

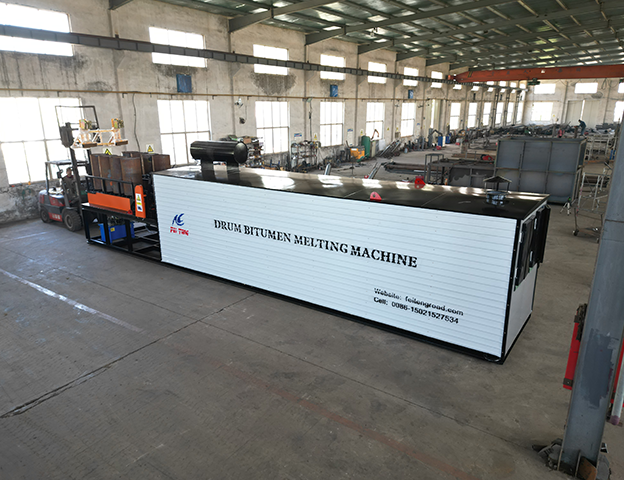

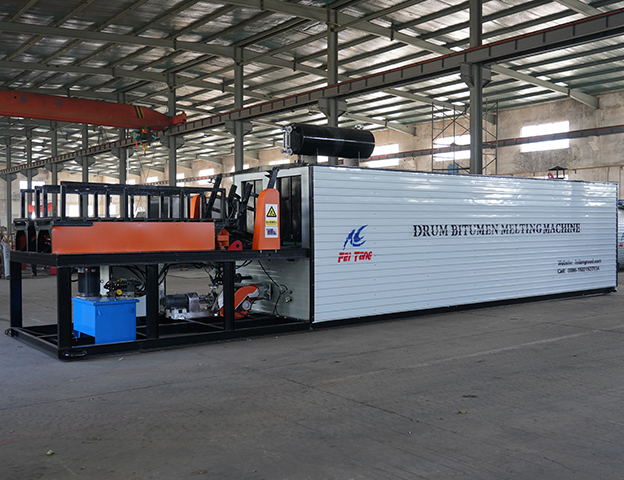

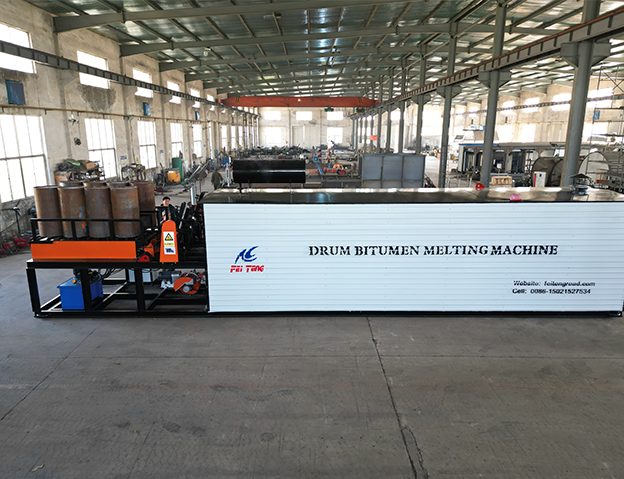

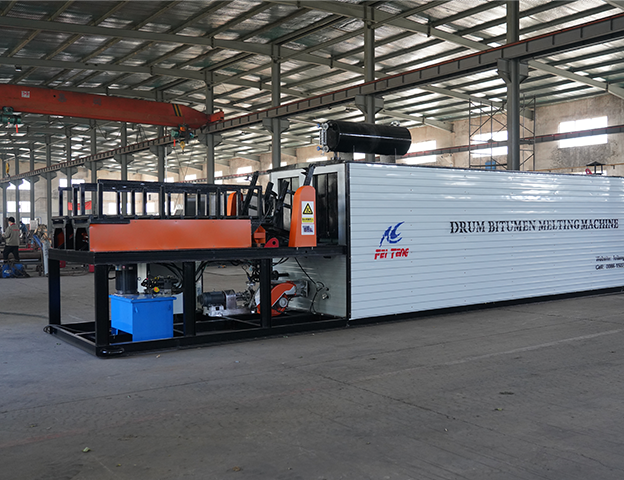

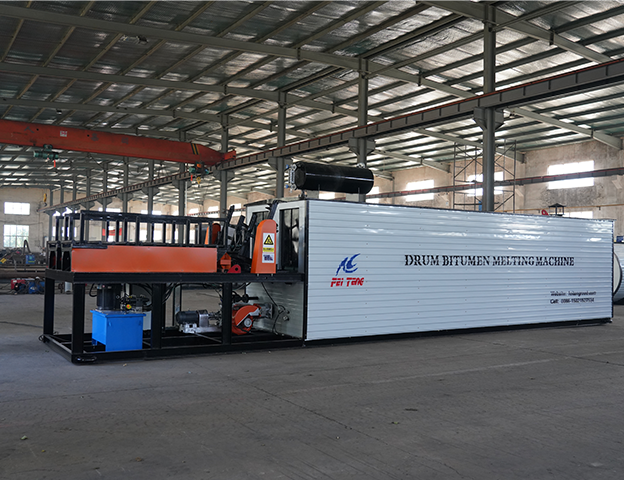

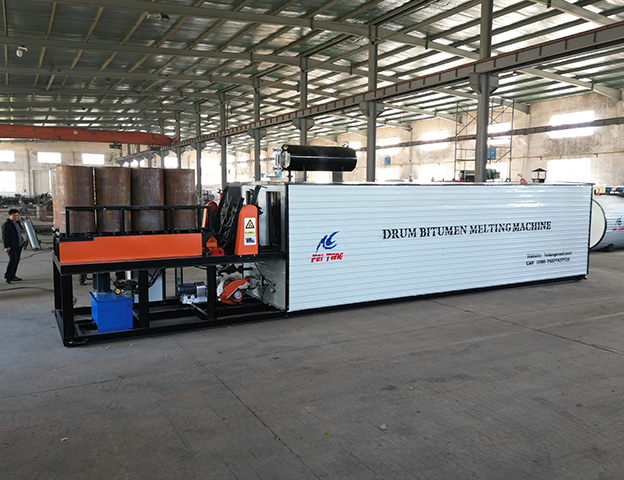

​ZYDST Series Automatic Bitumen Melting Machine with Burner

  • ZYDST-5
  • ZYDST-10
  • ZYDST-15

The ​ZYDST series automatic bitumen melting machine​ is a high-performance, eco-friendly solution for liquefying solid bitumen in drums. Featuring a ​diesel burner (Italy Baltur)​, ​thermal oil heating, and ​automatic drum tipping, it ensures fast melting, minimal residue (≤0.3%), and reduced labor costs.

Get Price Online consulting

Table of Contents

    Description

    ​Detailed Description​

    The ​ZYDST bitumen melting machine​ is designed for ​high-speed, energy-efficient bitumen decanting​ from drums. It combines ​direct heating (diesel/gas burner)​​ and ​indirect heating (thermal oil coils)​​ for optimal heat distribution.

    ​Structure & Working Principle​

    1. ​Self-Heating Integrated System​ – The machine integrates a ​thermal oil boiler​ and ​bitumen melting chamber, ensuring uniform heat transfer.
    2. ​Diesel Burner (Italy Baltur)​​ – Provides high-temperature combustion, with exhaust heat reused for energy efficiency.
    3. ​Thermal Oil Coils​ – Indirectly heat bitumen drums, preventing overheating and ensuring smooth liquefaction.

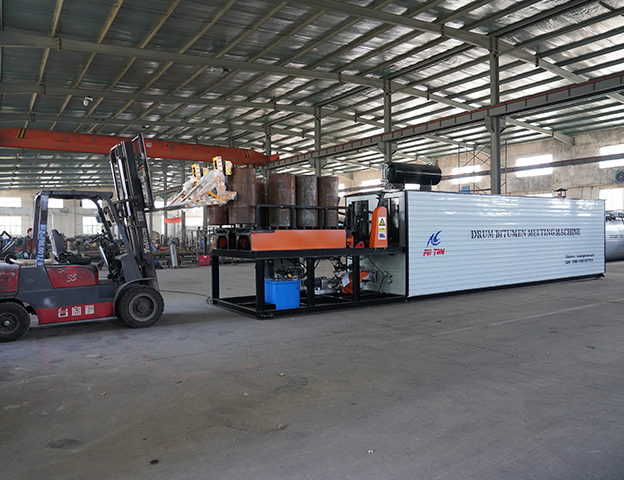

    4. ​Automatic Drum Tipping Mechanism​ – Drums are automatically fed, flipped, and emptied, reducing manual handling.
    5. ​Closed Insulated Design​ – Minimizes heat loss and emissions, making it an ​eco-friendly solution.

    Main Parameters

    ​Model​ ​ZYDST-5​ ​ZYDST-10​ ​ZYDST-15​
    ​Production Rate (t/h)​​ 4-6 8-10 10-15
    ​Bitumen Reservoir (m³)​​ 9 14 20
    ​Drum Quantity​ 18-22 28-32 42-48
    ​Sliding Way​ 2 lines 2 lines 3 lines
    ​Dimensions (L×W×H, m)​​ 9.45×2.25×2.52 12×2.25×2.52 12×3×2.52
    ​Total Power (KW)​​ 15.2 18.1 18.4
    ​Bitumen Pump Flow (m³/h)​​ 9.89 16.8 16.8
    ​Heat Exchange Area (m²)​​ 72.7 91 120
    ​Burner Power (KW)​​ 120-600 170-850 170-850

    Main Features

    Main Features​

    ​1. Rapid Melting Speed​

    • ​Zonal independent heating control​ ensures uniform heat distribution.
    • ​Exhaust heat recovery​ maximizes energy efficiency.
    • ​Direct heating combustion chamber​ reduces heat loss.

    ​2. Eco-Friendly Design​

    • ​Closed structure​ prevents pollution and reduces emissions.
    • ​Low residue (≤0.3%)​​ ensures minimal waste.

    ​3. Complete Bitumen Removal​

    • ​Thermal oil coils​ ensure thorough heating of each drum.
    • ​Dumping mechanism​ leaves no residual bitumen.

    ​4. Versatile Adaptability​

    • Compatible with ​500-580mm drums​ of various shapes.

    ​5. Automated Operation​

    • ​Automatic drum feeding, tipping, and retraction​ reduce labor costs.

    ​6. Easy Relocation​

    • ​Modular design​ allows quick assembly and transportation.

    ​Conclusion​

    The ​ZYDST automatic bitumen melting machine with burner​ is an ​energy-efficient, eco-friendly, and labor-saving​ solution for bitumen processing. With ​high thermal efficiency (≥90%)​, ​low residue (≤0.3%)​, and ​automated drum handling, it is ideal for road construction and industrial applications.
