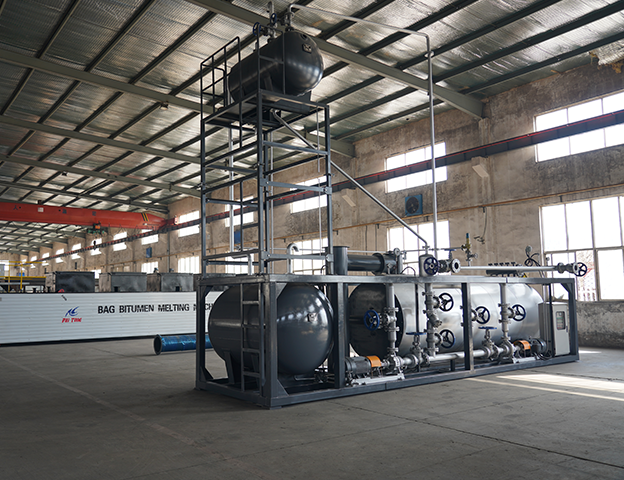

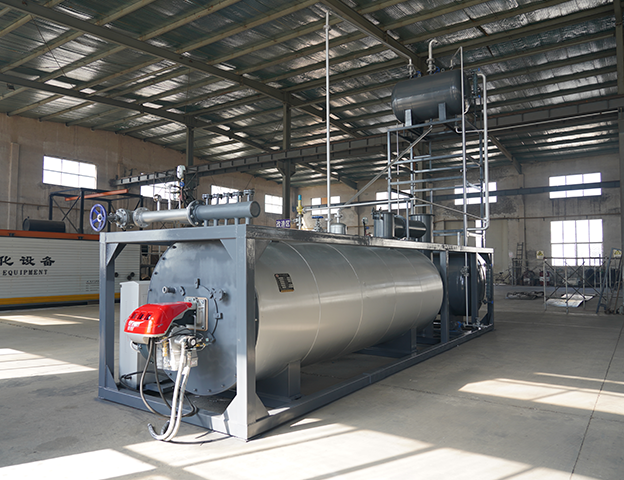

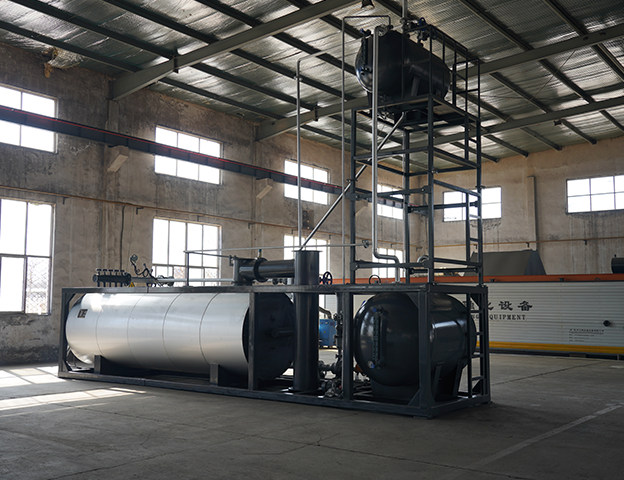

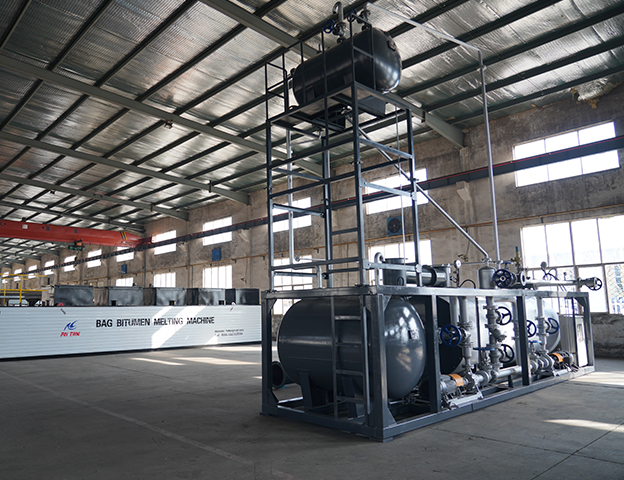

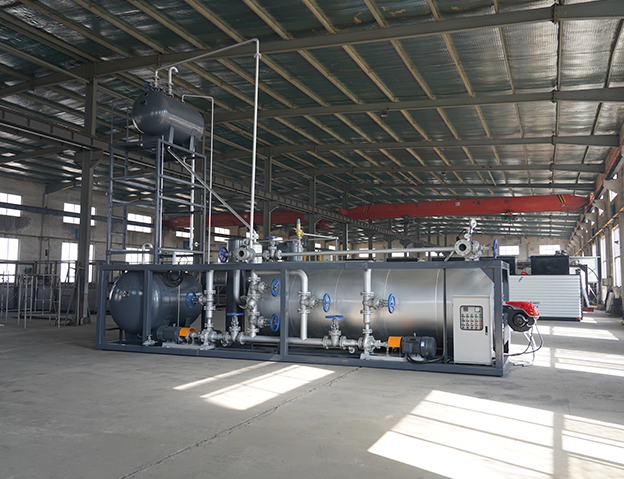

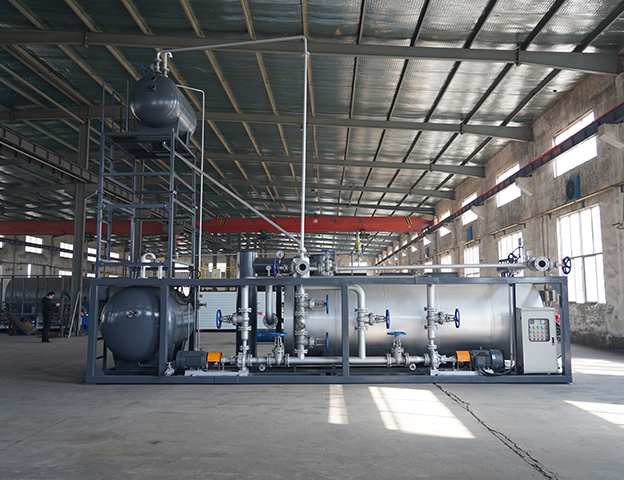

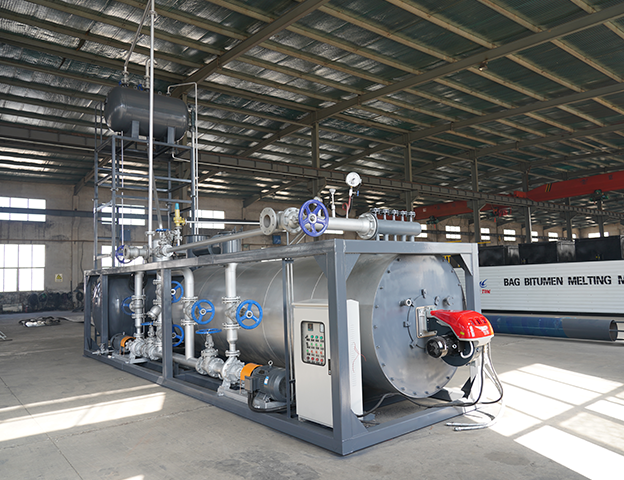

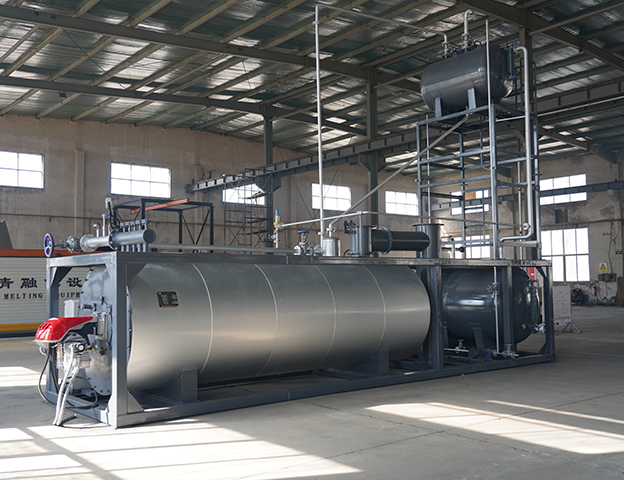

Thermal Oil Boiler | Heat Transfer Oil Furnace for Asphalt Plants & Industrial Heating

Feiteng's thermal oil boiler is an advanced industrial heating solution using organic heat-conducting oil and diesel oil burners. With exceptional energy efficiency, precise temperature control, and robust safety features, it's ideal for asphalt plants, construction projects, and industrial production lines.

Get Price Online consulting

Table of Contents

    Description

    The Thermal Oil Boiler by Feiteng is engineered to deliver high-performance, safe, and efficient heating for various industrial applications. Utilizing diesel oil as the primary fuel and organic heat carrier (heat transfer oil) as the medium, this boiler ensures a stable heat source with output temperatures reaching up to 300°C. The closed-loop system uses a high-temperature oil pump to force continuous liquid-phase circulation, transferring thermal energy efficiently while maintaining pressure stability.

    The boiler features a high-efficiency burner (RIELLO), which ensures complete fuel combustion and low emissions, meeting and exceeding environmental standards. A PLC automatic control system guarantees precise temperature regulation, automatic fault detection, alarms, and shutdowns for full safety assurance.

    Its modular design allows for easy installation and maintenance. Custom fuel options such as natural gas, electric heating, coal, and horizontal or vertical configurations are available, supported by Feiteng’s expert engineering team.

    This boiler is widely applicable in bitumen production lines, asphalt mixing stations, chemical industries, and construction sites, offering a reliable and energy-saving solution for heat demand.

    Structure & Working Principle

    The thermal oil heating system is composed of a diesel oil burner, a thermal oil circulation system, and a smart control panel.

    ▶ Combustion System

    • High-efficiency Riello burner ensures full combustion of diesel fuel

    • Combustion gases heat the coils, indirectly heating the organic heat transfer oil

    • Flue gases are released through the chimney with optimized emission control

    ▶ Circulation & Transfer

    • Heated oil is pumped via high-temperature resistant oil pumps (flow rate: up to 160 m³/h)

    • The oil circulates in a closed-loop system, transferring heat to target equipment

    • The cooled oil returns to the boiler for reheating, maximizing energy reuse

    ▶ Control System

    • The system uses PLC intelligent control with digital display

    • Functions include: temperature adjustment, fault diagnosis, automatic start/stop

    • Optional features: remote monitoring, SCADA integration, over-temperature alarm, and emergency shutdown

    Main Parameters

    Item Unit Parameter
    Heat Output Kcal/h 1,200,000 – 1,600,000
    Diesel Oil Burner – RIELLO 190 / RL250
    Fuel Consumption kg/h 90–120
    Max. Output Temperature ℃ 300
    Thermal Oil Capacity t 3.5
    Pump Flow Rate m³/h 100–160
    Inlet Diameter mm DN125 / DN150
    Outlet Diameter mm DN125 / DN150
    Main Body Size m 5–5.43 × 2.2–2.3 × 2.35–2.65
    Total Power kW 42–47
    Power Requirement – 380V, 50Hz, Stable AC
    Temperature Control – PLC Automatic Control System
    Application – Asphalt Plant, Industrial Heating, Bitumen Production

    Main Features

    Application Scenarios

    Our thermal oil boilers are designed to serve a wide range of heating applications requiring stable high-temperature performance. Common use cases include:

    • 🛣 Asphalt mixing plants: Provides consistent heating to keep bitumen fluid during road construction.

    • 🏭 Chemical processing industries: Maintains precise temperature for chemical reactions.

    • 🏗 Construction material manufacturing: Heats adhesives, sealants, and insulation materials.

    • 🛢 Bitumen storage and transport: Ensures smooth flow of bituminous products in cold environments.

    • 🍲 Food industry: Provides clean, indirect heating for food-grade applications.

    • 🧪 Pharmaceuticals & cosmetics: Offers contamination-free indirect heat for sensitive processes.

    What is a thermal oil boiler used for?

    A thermal oil boiler is an industrial heating system designed for indirect heat transfer using heat-conducting oil. It’s widely used in applications where traditional steam boilers may be unsafe or less efficient, including bitumen heating, textile drying, plastic molding, and chemical reactors.

    Diesel vs Electric Thermal Oil Boilers

    While diesel thermal oil boilers are known for their rapid heating and high BTU output, electric boilers offer a zero-emission alternative suitable for indoor or sensitive environments. Feiteng offers both types and provides consultation to help you choose the best option for your needs.

    Q1: What is the heating time to reach 300°C?

    A: Depending on ambient temperature and oil volume, it usually takes 25~40 minutes.

    Q2: Can I use this boiler for bitumen melting and pumping?

    A: Absolutely. It’s designed for continuous heat supply, ideal for bitumen and asphalt applications.

    Q3: Is the system compatible with SCADA or remote control?

    A: Yes. Our boilers can integrate with your automation systems including SCADA or DCS platforms.

    Q4: What’s the delivery time and warranty?

    A: Standard delivery is within 20–25 days. We offer a 12-month warranty with free replacement for quality-related components.

    Packaging & Delivery

    • Container Loading: Fits 1*40 HQ (with accessories)

    • Packaging: Wrapped with anti-corrosion film, protected by steel frame

    • Estimated Weight: 5000~5500 KG

    • Global Delivery: Support FOB, CIF, EXW terms
