YDST Series Drum Bitumen Melting Equipment | Self-Heating Integrated Asphalt Processing Equipment

  • YDST-8
  • YDST-10

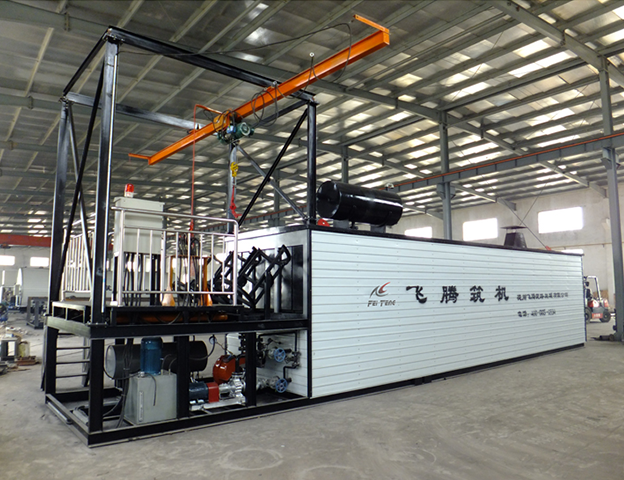

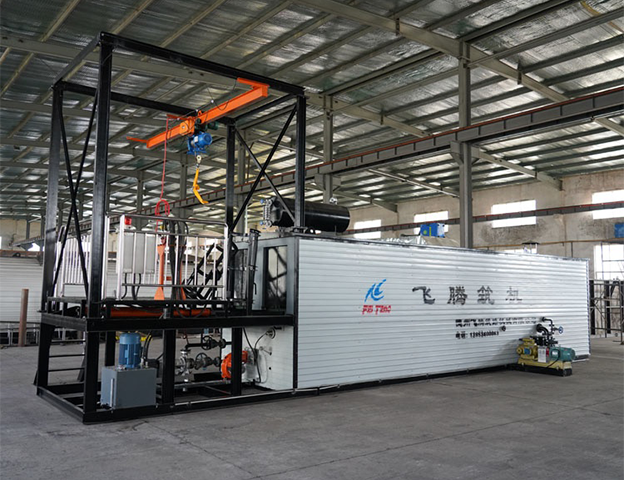

The YDST series drummed bitumen melting equipment is a high-efficiency asphalt processing system independently developed by Dezhou Feiteng. It adopts a self-heating integrated structure that perfectly combines thermal oil boiler and bitumen decanting functions. Using a diesel burner as the heat source and dual heating methods (thermal oil coils and high-temperature flue gas), it achieves a processing capacity of 8-10 tons per hour. The patented turnover technology and drum plate design ensure complete and thorough bitumen removal without waste or pollution, making it an ideal choice for road construction and asphalt mixing plants.

Get Price Online consulting

Table of Contents

    Description

    Equipment Structure Principle

    The YDST series bitumen decanter adopts an automatic spring-door sealed box structure, mainly consisting of the following systems:

    1. ​Decanter Tank System: It is divided into upper and lower chambers. The upper chamber is for bitumen decanting, surrounded by thermal oil heating coils; the lower chamber is the asphalt melting tank, with thermal oil coils and a high-temperature flue at the bottom.

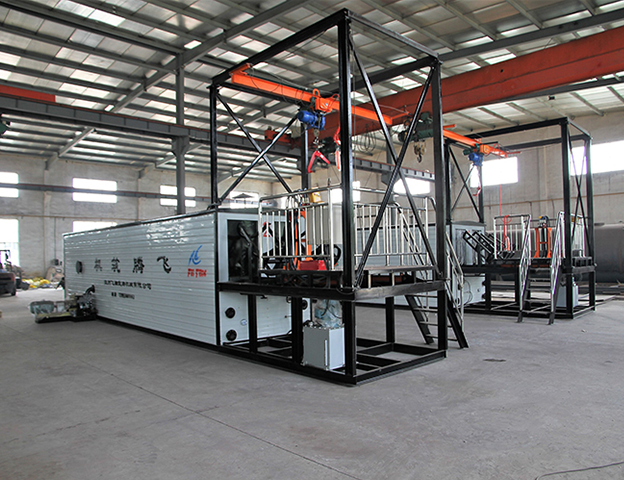

    2. ​Feeding System: Includes cantilever lifting mechanism, electric hoist, tipping device, and hydraulic propulsion system for fully automatic feeding.

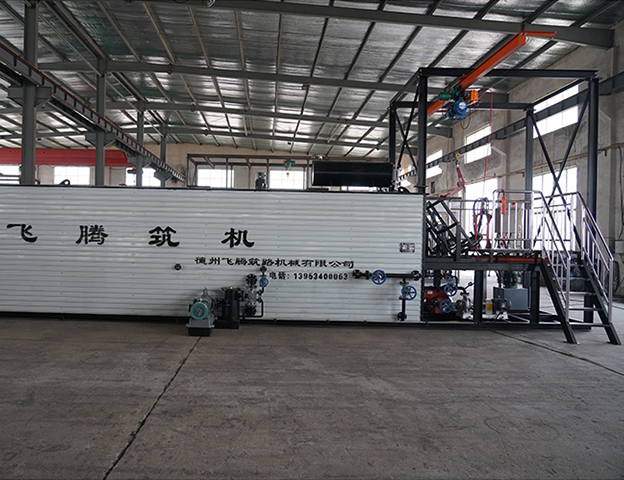

    3. ​Heating System: This system uses a diesel burner (600,000-720,000 Kcal) as the heat source and is equipped with a thermal oil circulation system (including a thermal oil pump, oil-gas separator, expansion tank, etc.) and flue gas heating system.

    4. ​Bitumen Processing System: Includes an insulated asphalt pump, filtration device, pipeline system, and liquid level alarm system.

    5. ​Control System: Integrated electrical control cabinet for automatic temperature control and safety monitoring.

    ​Workflow:

    1. Electric hoist lifts opened bitumen drum to tipping device
    2. Tipping device rotates drum 180° into drum plate
    3. Hydraulic pusher propels drum into decanting chamber
    4. Dual heating (thermal oil coils + high-temperature flue gas) melts bitumen
    5. Liquid asphalt flows into the lower chamber for further heating to pumping temperature
    6. Asphalt pump transfers asphalt to storage tank while empty drum exits from outlet

    Technical Advantages

    1. ​High Thermal Efficiency: Built-in heating furnace design reduces heat loss, and secondary use of high-temperature flue gas improves thermal efficiency

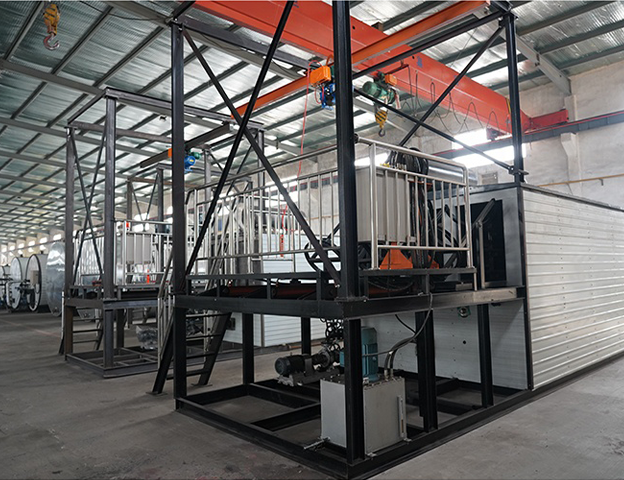

    2. ​Patent Technology: Turnover technology reduces labor intensity, and drum plate technology minimizes equipment wear
    3. ​Intelligent Control: Automatic temperature adjustment, liquid level alarm, easy operation
    4. ​Eco-Friendly Design: Enclosed structure prevents asphalt volatilization pollution, automatic impurity filtration

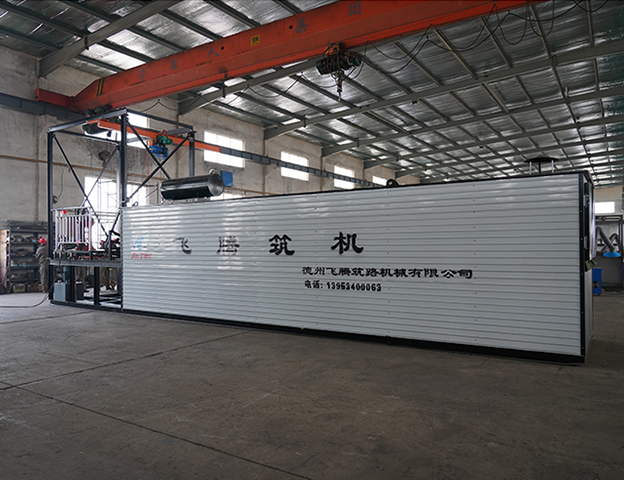

    5. ​Modular Design: Complete machine in a container for easy transportation and quick installation

    Main Parameters

    Parameter YDST-8 YDST-10

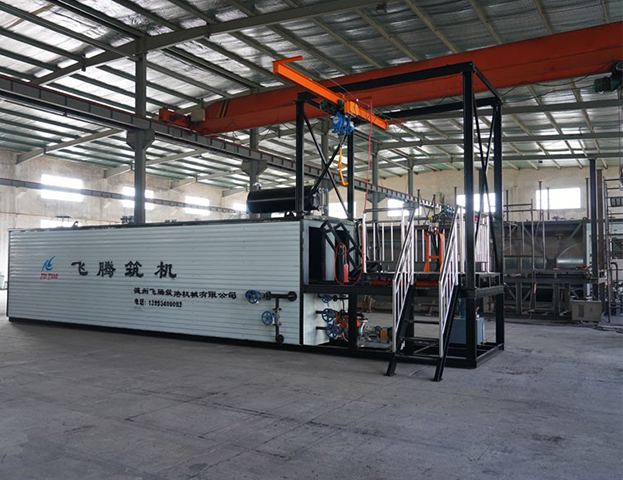

    Capacity (t/h) 8-10 8-10
    Melting Tank Volume (m³) 14 15
    Drum Capacity (500mm) 28 32
    Track Quantity 2 lines 2 lines
    Dimensions (m) 12×2.2×2.55 12×2.2×2.54
    Total Power (KW) ≈17 ≈20
    Burner Heat Value (Kcal) 600,000 720,000
    Container Requirement 1×40HQ 1×40HQ

    Main Features

    Key Features

    1. ​High-Efficiency Melting: A Dual heating system (thermal oil + flue gas) ensures rapid melting, 30% higher thermal efficiency than conventional equipment
    2. ​Complete Bitumen Removal: Uniform high-temperature heating ensures thorough decanting with <0.5% residue
    3. ​Automatic Slag Removal: The Pipeline filtration system automatically removes impurities for pure asphalt
    4. ​Precise Temperature Control: PLC system automatically adjusts burner operation, maintaining asphalt temperature within ±2°C
    5. ​Easy Operation: Ergonomic design with electric hoist and hydraulic system reduces labor intensity
    6. ​Energy-Saving & Eco-Friendly: Enclosed structure + rock wool insulation with <5% heat loss, no asphalt volatilization pollution
    7. ​High Adaptability: Customizable for different drum types and asphalt grades
    8. ​Patent Protection: 3 core patent technologies guarantee leading performance
    9. ​Easy Maintenance: Modular design allows easy access to key components
    10. ​Cost-Effective: Integrated design saves boiler transportation and installation costs with quick ROI

    Value-Added Services

    • Free equipment layout and foundation drawings
    • Remote video technical support
    • Free replacement of defective parts within 12 months
    • Optional on-site installation, commissioning, and operator training
    • OEM/ODM customization available

    Dezhou Feiteng Road Construction Equipment Co., Ltd. holds ISO9001/14001/OHSAS18001 certifications with an annual production capacity of over 200 units. Our products are exported to more than 50 countries and regions worldwide. Renowned for premium steel materials, precision manufacturing, and strict quality control, our bitumen-melting equipment is your reliable choice for asphalt processing needs.
