Product Bitumen Storage Tank

DL Series Thermal Oil Heated Bitumen Tank | 30-50m³ Customizable Asphalt Storage System

  • DL-30
  • DL-35
  • DL-40

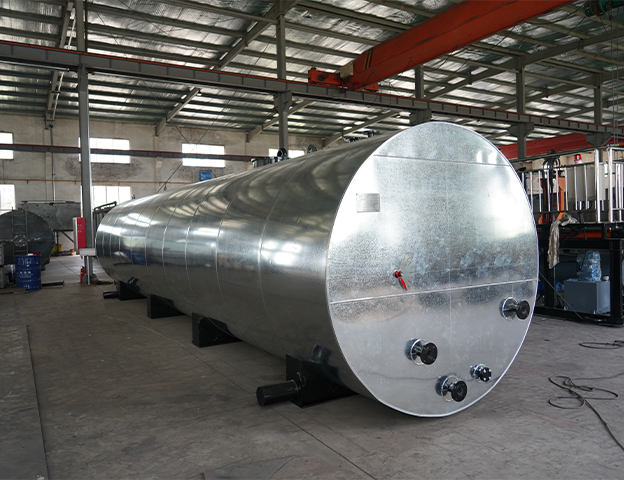

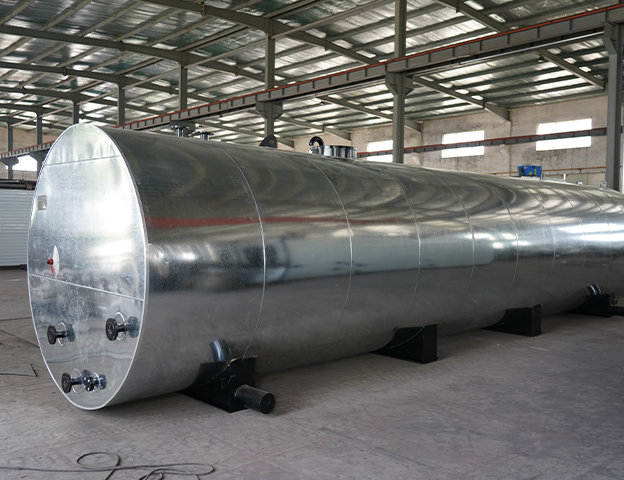

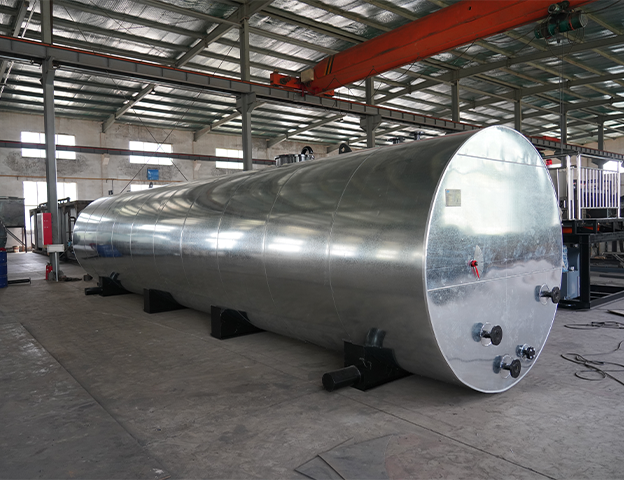

Feiteng DL Series thermal oil asphalt tanks adopt a longitudinal support structure (Φ2.2×11.9m) with ​20℃/h rapid heating and ​dual automatic temperature control (bitumen & thermal oil). Built with Q235B galvanized steel and rock wool insulation, they support multi-tank parallel operation for asphalt mixing plants and large-scale storage terminals.

Get Price Online consulting

Table of Contents

    Description

    Intelligent Asphalt Storage & Heating System
    ▍Core Innovations

    1. ​High-Efficiency Heating Module

      • Built-in low-pressure, high-temperature thermal oil coils (DN50 seamless steel tubes)
      • Supports multi-tank shared boiler systems (1 boiler + N tanks)
      • ​200℃ max temperature for modified asphalt (e.g., SBS)

    2. ​Military-Grade Structural Design

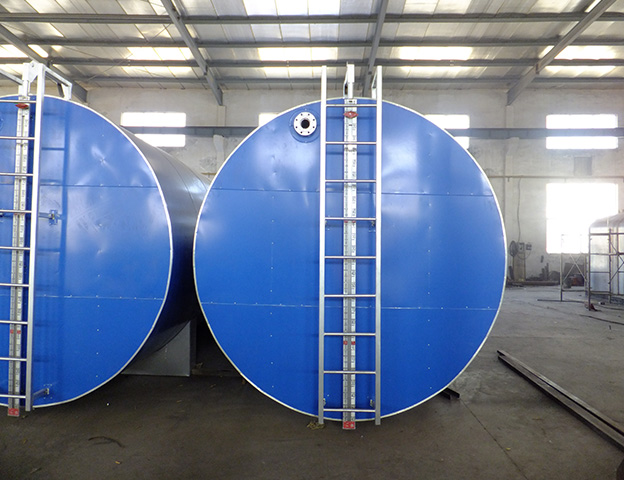

      • 5mm Q235B steel shell + 8mm flanged end plates (double-sided welding)
      • ​Longitudinal integrated legs for enhanced transport stability
      • Scalable modular design (30-50m³ capacity combinations)

    3. ​Smart Monitoring System

      • Dual-channel automatic temperature control (±2℃ accuracy)
      • Digital level indicator + high-level alarm
      • Remote diagnostics with IoT compatibility

    ▍Industry Applications

    • Continuous asphalt supply for mixing plants
    • Cross-regional road maintenance projects
    • Temporary storage for petrochemical products
    • Waterproofing membrane production lines

    Main Parameters

    Key Specifications

    ​Parameter ​Value ​Test Standard
    ​Heating Rate 20℃/h (ambient ≥25℃) GB/T 17410
    ​Max Working Pressure 0.8MPa (thermal oil side) ASME B31.3
    ​Insulation Loss ≤3℃/24h (ambient 20℃) ASTM C518
    ​Bitumen Pump Head 30m horizontal / 15m vertical ISO 2858
    ​Power Requirements 380V/50Hz (2kW control panel) IEC 60034

    Main Features

    Key Features

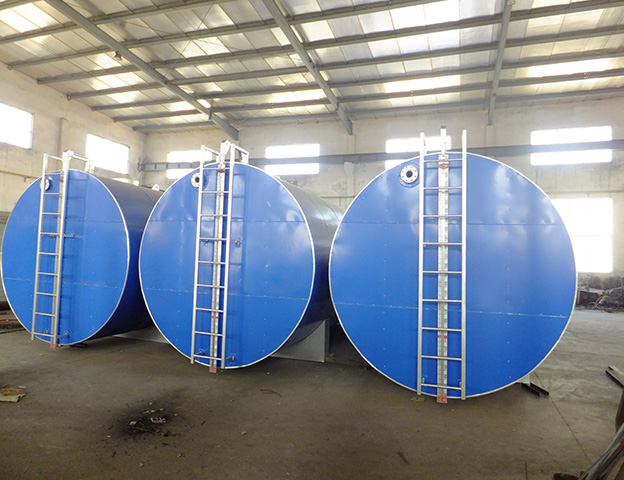

    ✅ ​Rapid Heating Performance

    • ​20℃/h heating rate (33% faster than industry standards)
    • ​200℃ temperature control for specialty asphalt

    ✅ ​Modular Scalability

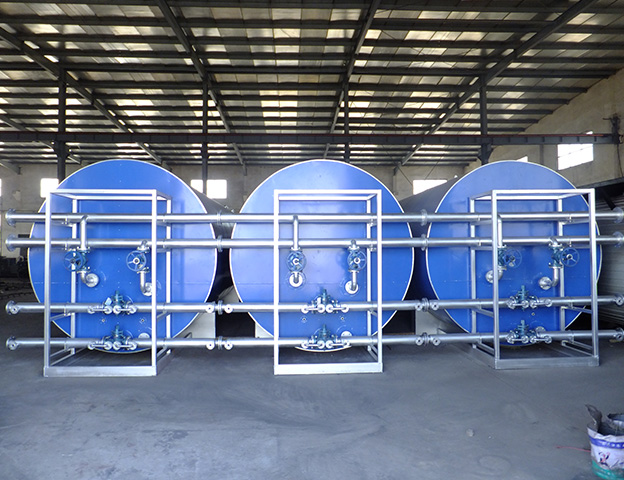

    • ​Multi-tank parallel operation (shared boiler system)
    • Optional cylindrical/square tanks (site adaptability)

    ✅ ​Triple Protection Design

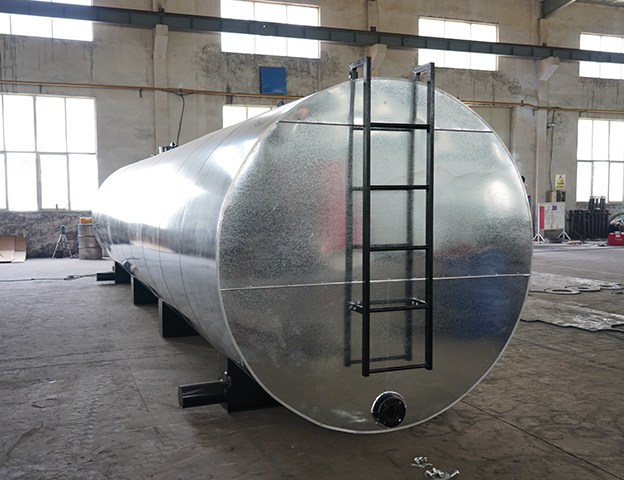

    1. ​Corrosion Resistance: Galvanized + epoxy coating (2000h salt spray test)
    2. ​Zero-Leak Seals: Laser welding + dual-seal flanges
    3. ​Smart Safety: Auto shutoff + emergency pressure relief

    ✅ ​Eco-Certified Efficiency

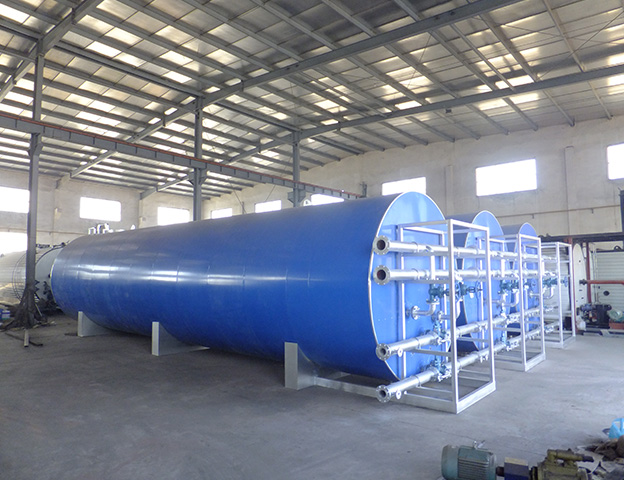

    • Rock wool insulation (LEED-compliant)
    • ​92% thermal efficiency (ISO 13600 certified)

    ✅ ​Global Project Support

    • Pre-assembled 40HQ container modules
    • Multilingual manuals (EN)
    • 72-hour emergency spare parts network
